WXP80 analog measurements

This page shows the analog measurements of the WXP80 heating element connected to an operational amplifier. From the results a formula is calculated to model this.

PTC resistance and voltages WXP80

The tip is heated up in small incremental steps using a DC power supply. After waiting for the temperature to stabilize (for each measurement about 7 minutes) the tip PTC temperature as well as resistance was measured. The small PCB in the WXP80 has a biased gain amplifier, With this the temperature is converted to a voltage, suitable for AD conversion. The WX2 supplies the opamp and the AD converter on the PCB with 4.66v. For these measurements the voltage was supplied externally and adjusted for small changes during warming up.

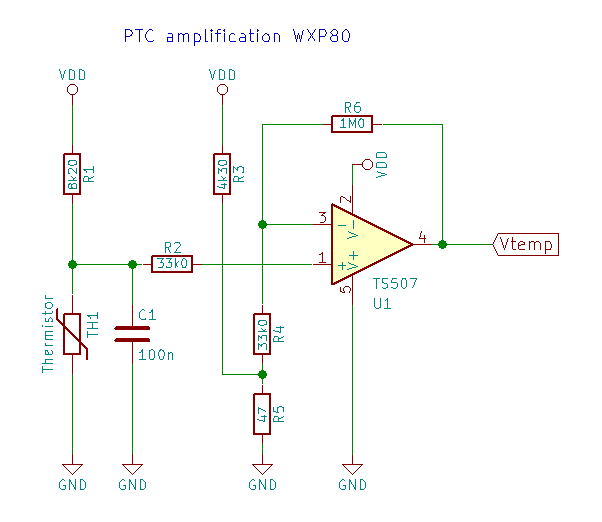

The schematic diagram (with Vdd 4.66v) for the biased gain amplifier is:

With increasing the temperature in steps, the resistance Rv of TH1 as well as the output of the opamp Vtemp was measured:

Vheat-element (in V) TH1 (in Ω) Vtemp (in V) Temp (in °C) : Vheat-element (in V) TH1 (in Ω) Vtemp (in V) Temp (in °C)
0.000 108.5 0.399 22.5 : 2.750 133.9 0.850 76.2
0.250 109.0 0.405 23.2 : 3.000 138.0 0.917 85.2
0.375 109.1 0.411 23.6 : 3.250 143.3 1.014 97.2
0.500 109.5 0.416 24.4 : 3.500 148.5 1.112 109.2
0.750 110.7 0.438 26.8 : 3.750 153.5 1.202 120.4
1.000 112.3 0.467 30.4 : 4.000 158.6 1.289 130.8
1.250 114.4 0.502 34.5 : 4.250 163.9 1.381 142.3
1.500 116.9 0.550 39.8 : 4.500 168.8 1.464 152.9
1.750 119.7 0.598 45.8 : 4.750 173.8 1.553 162.6
2.000 123.2 0.659 53.7 : 5.000 180.7 1.670 177.6
2.250 126.7 0.724 61.1 : 5.250 186.2 1.767 188.4
2.500 130.1 0.783 68.2 : 5.500 191.8 1.866 199.0

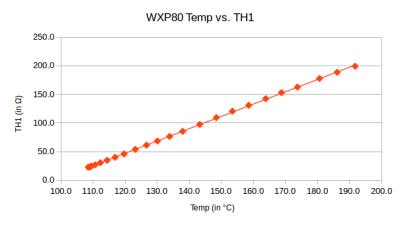

Entering this data in libre office calc, reveals the following graph:


Based on the observations we assume that the relationship between temperature and resistance is linear. We can thus find a first order formula which approaches the data pretty well. A general function looks like:
$R = aT + b \tag{1}$
where $\begin{align*}a\end{align*}$ is the slope and $\begin{align*}b\end{align*}$ the intercept of the vertical-axis.

The so called normal equations for the estimated slope $a$ and intercept $b$ are:
$$\begin{align*}n\ a + ST\ b = SR \end{align*}$$ $$\begin{align*}ST\ a + STT\ b = SRT \end{align*}$$ with $\begin{align*}n\end{align*}$ the number of data
$$\begin{align*}ST = \sum\limits_{i=1}^n T_i \end{align*}$$ $$\begin{align*}STT = \sum\limits_{i=1}^n T_i^2 \end{align*}$$ $$\begin{align*}SR = \sum\limits_{i=1}^n R_i \end{align*}$$ $$\begin{align*}SRT = \sum\limits_{i=1}^n T_iR_i \end{align*}$$ with solution $$\begin{align*}a= \frac{n\ SRT- SR\ ST}{n\ STT - ST^2} \end{align*}$$ $$\begin{align*}b= \frac{1}{ST} (SR-n\ a) \end{align*}$$ or alternatively $$\begin{align*}b=\frac{STT\ SR - ST\ STR}{n\ STT - ST^2} \end{align*}$$

With the data from the table above, the least squares trendline is:

$R = 0.465T + 98.17 \tag{2}$
where $\begin{align*}T\end{align*}$ is the temperature in °C and $\begin{align*}R\end{align*}$ the resistance of TH1 in Ω.

Please note that libre office calc offers an easy method to acquire this equation directly, using the 'show equation' option. It will show equation (2) right away:

The opamp is configured as a DC coupled non-inverting amplifier with a bias. To calculate the gain (G) and bias (Vb), we use following equations:

$G = 1 + \frac{R6}{R4 + \frac{R3 \cdot R5}{R3 + R5}} = 1 + \frac{1.0 \cdot 10^6}{33\cdot10^3 + \frac{33\cdot10^3 \cdot 47}{33\cdot10^3 + 47}} = 31.1 \tag{3}$
where $\begin{align*}R3\end{align*}$ = 4.3kΩ, $\begin{align*}R4\end{align*}$ = 33.0kΩ, $\begin{align*}R5\end{align*}$ = 47Ω and $\begin{align*}R6\end{align*}$ = 1.0MΩ

The bias voltage is a simple voltage divider with $\begin{align*}R3\end{align*}$ and $\begin{align*}R5\end{align*}$:

$V_b = V_{dd} \frac{R5}{R5 + R3} = 4.66 \frac{47}{47 + 4300} = 0.0501 \tag{4}$
where $\begin{align*}V_{dd}\end{align*}$ = 4.66v

We now are able to calculate a transfer function using the PTC resistor value to find the opamp output voltage relative to the temperature. (Alternatively we could calculate the transfer function using the least squares method of the output voltage data from the table above.)

The transfer function is:

Tools and measuring equipment

  • Philips PE 1542 DC power supply
  • Temperature: no-name kitchen-bread thermometer (max 199 °C)
  • Fluke 87 multimeter
